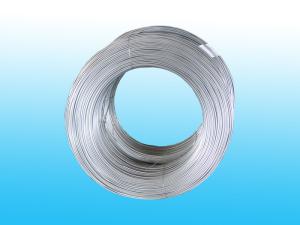

Low Carbon Hot Galvanized Bundy Pipe 4 * 0.7 mm / Condenser Tube
material:low carbon steel strip
main use:widely used in Air,conditioning,Evaporator,Compressor,Condenser etc
outer diameter:4mm
wall thickness:0.70mm
standard:GB/T24187-2009
1.materials: low carbon steel strip
2.main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc
3.outer diameter:4.0mm
4.wall thickness: 0.7mm
5. standard: GB/T 24187-2009
6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Enviroment Management System
7.surface treatment: coating zn and hot galvanized
8. features:soft and easy to bend
9.tensile strength: more than 290 Mpa
10.yield strength:more than 180 Mpa
11.elongation:more than 25%
12. salt fog-resisting test time:also more than 72 hours
13.place of origin:changzhou city,jiangsu province,china
14. port of loading:shanghai, China
15. package:plastic cloth with coils, wooden boxes, iron pallets etc
16. delivery:as contract
17.payment terms:T/T,L/C etc
18. supply ability:30000 ton per year
19. brand:WUSHUN
Applications:
Zn coated steel tube mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made by material low carbon steel strip and based on the national standard.
Specifications:
|
specification
|
dimensional tolerance
|
Mechanical properties
|
|
Diameter tolerance
|
Wall thickness tolerance
|
tensile strength
|
yield strength
|
elongation
|
|
hot galvanized steel pipe 4*0.7mm
|
±0.08
|
±0.08
|
≥290Mpa
|
≥180Mpa
|
≥25%
|
Galvanized pipe corrosion performance index
|
Product name
|
Zinc coating thickness
|
Salt spray test time
|
|
White galvanized tube
|
≥2μm
|
≥24 hours
|
|
≥4μm
|
≥72 hours
|
|
≥6μm
|
≥84 hours
|
|
Green
Galvanized tube
|
≥4μm
|
≥96hours
|
|
≥6μm
|
≥108hours
|
|
≥7μm
|
≥120 hours
|
Competitive Advantage:
Salt fog-resisting test time from 72h to 1000h,corrosion resistance is great ,and also produce every spec by customer's requirment.Size is complete and best price with best quality.
